Foundation Repair Photo Album: Foundation Pier Installation Benson, AZ
This photo album showcases a professional foundation pier installation at a residential property in Benson, Arizona. The home was experiencing signs of settlement, including cracks in the walls and uneven flooring—common issues in southern Arizona due to expansive soils and fluctuating moisture levels.
Our crew installed a series of foundation piers to stabilize and permanently support the structure. Each pier was carefully driven into competent load-bearing strata, ensuring long-term support for the home’s foundation. These photos document the step-by-step process, from site preparation and pier layout to installation and final stabilization. The result is a secure and level foundation that protects the home from further structural damage.
Foundation Repair Residential in Benson AZ

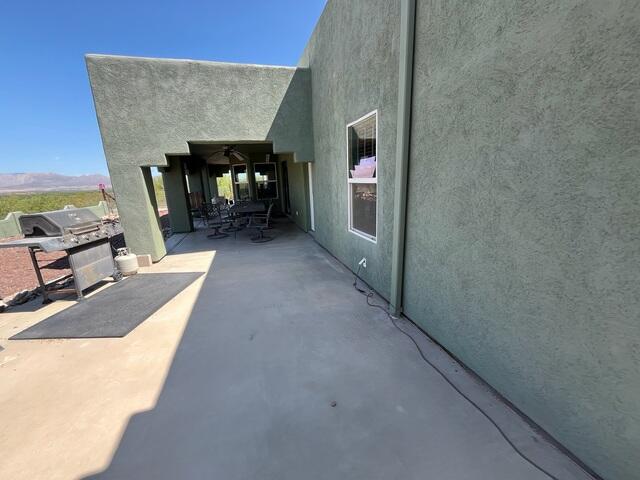

Benson, AZ home before job begins

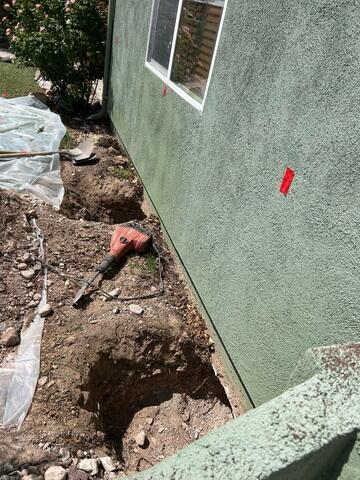

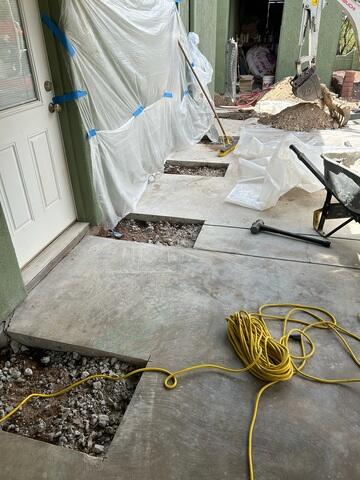

During Pier Installation
Before piers get installed, holes need to be dug

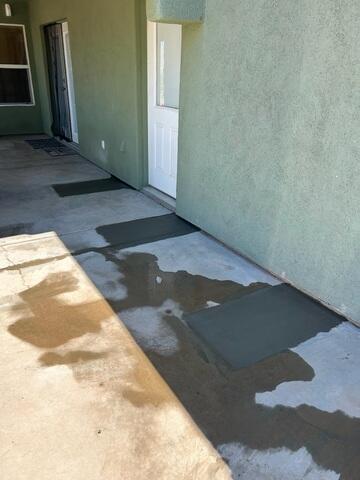

After Piers are Installed
When piers have been installed and buried, concrete is placed over the top known as concrete R+R

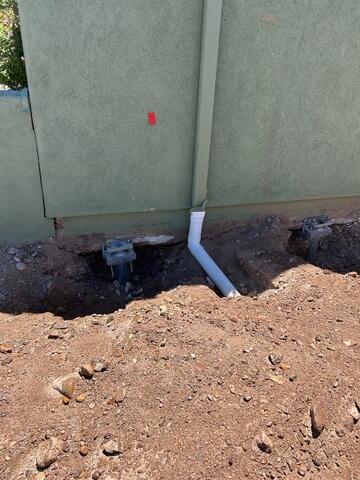

Pier and Bracket Installed
After installation of pier and bracket, the lift occurs to level the foundation.
Pre Job Measurements
Measuring out the spaces between pier installation locations.
