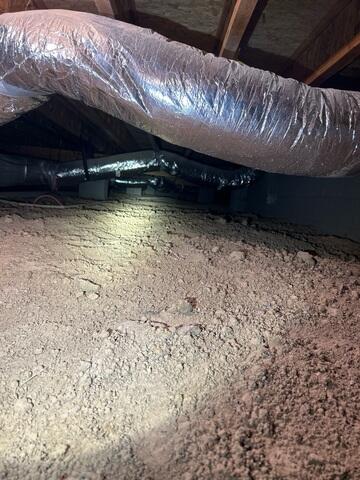

Crawl Space Before SmartJack Installation in Show Low, AZ
The crawlspace beneath this Show Low home contains exposed soil, insulated ductwork, and existing support columns. This view documents conditions before Arizona Foundation Solutions installed additional floor supports.

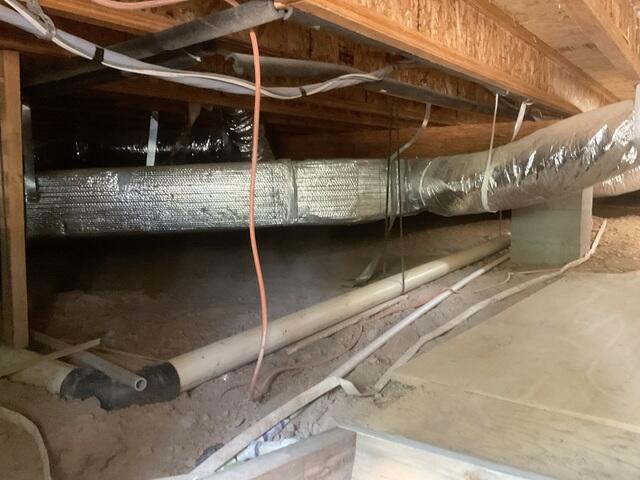

Existing Crawl Space Floor Framing in Show Low, AZ
Wood floor framing, an existing support column, plumbing, and ductwork are visible beneath the home. This photo provides a view of the crawlspace layout before the SmartJack support installation.

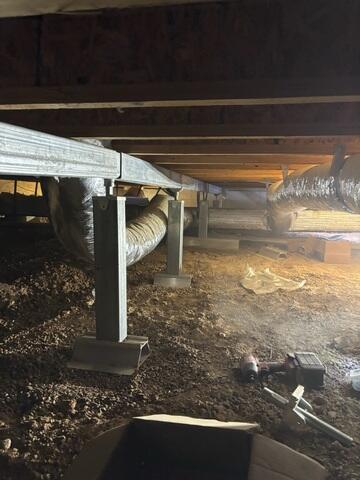

SmartJack Supports and Steel Beam Installed Beneath the Floor
A row of SmartJack supports holds a supplemental steel beam beneath the wood floor joists. This view shows the added floor support system installed by Arizona Foundation Solutions at the Show Low property.

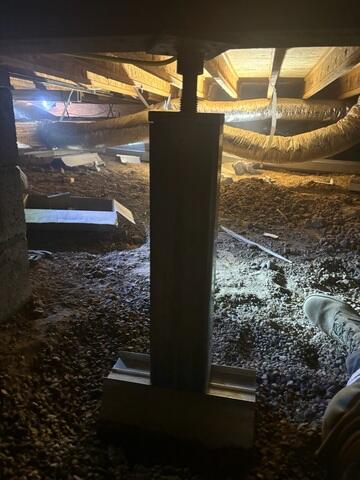

Adjustable SmartJack Support in a Show Low Crawl Space
A close view of a SmartJack post shows its steel column, base plate, and threaded adjustment connection beneath the supplemental beam. Ductwork and existing structural supports remain visible in the surrounding crawlspace.

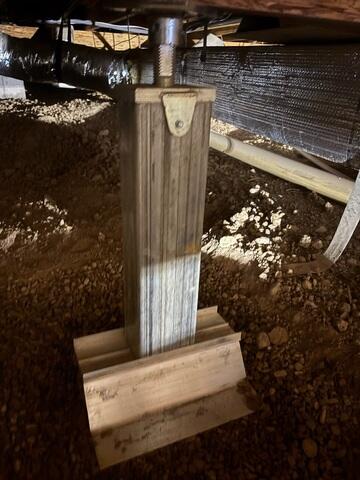

SmartJack Post and Base Connection in Show Low, AZ
This installation detail shows a SmartJack steel post seated on its base plate, with the adjustable connection above. The support is positioned beneath the floor structure alongside existing crawlspace utilities.

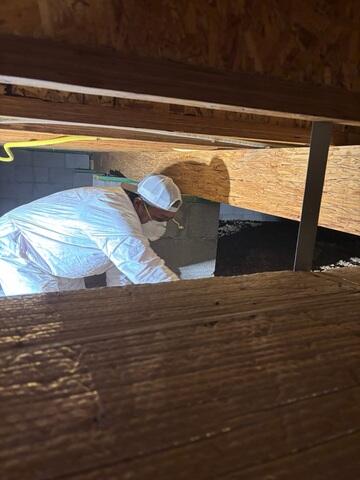

Crawl Space Support Installation Work in Show Low, AZ
An Arizona Foundation Solutions crew member works beneath the wood floor framing during the crawlspace repair project. The photo shows the confined working area around an existing masonry support column.

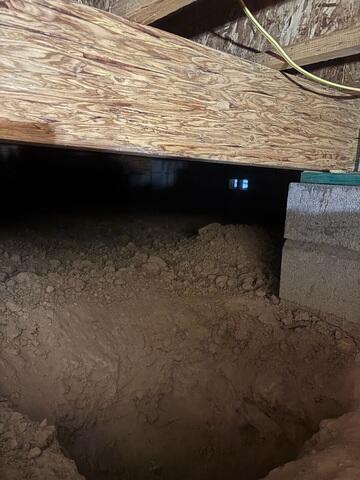

Excavation for Crawl Space Support Installation
An excavated area beneath the wood framing shows preparation work for the SmartJack installation. The existing masonry column and exposed soil provide context for the support work at this Show Low home.

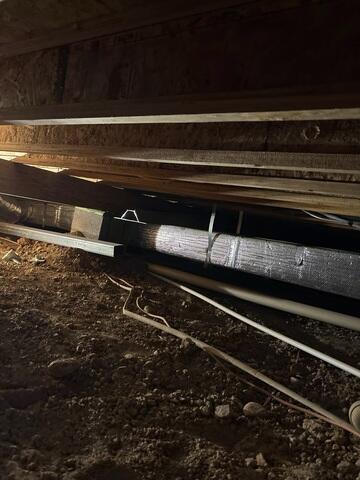

Supplemental Steel Beam Preparation Beneath the Home
A steel beam lies beneath the floor framing near existing ductwork and plumbing during installation preparation. Supplemental beams are part of the new crawlspace support system installed at this Show Low property.

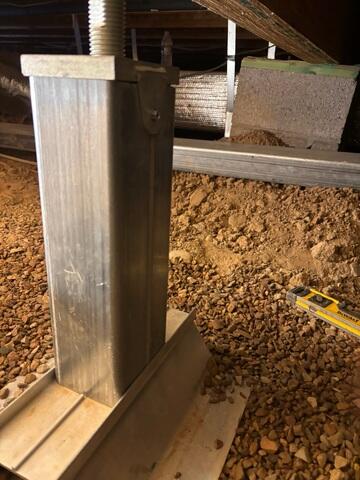

SmartJack Steel Support Installation Detail
This close-up shows a SmartJack post, its base plate, and threaded adjustment assembly during installation. A steel beam and level are visible nearby as the crew works on the crawlspace floor support system.
