Crawl Space Repair Photo Album: SmartJack Crawl Space Support Installation in Globe, AZ

Arizona Foundation Solutions installed 15 SmartJack supports beneath this Globe, AZ home to reinforce the existing floor support system. The installation included 12 SmartJack units in the 5–7-foot range and three units in the 0–3-foot range, accommodating the varying clearance beneath the home. The project photos show the original wooden support posts, exposed floor framing, and rocky ground beneath the house, along with interior wall cracks documented before the repairs. Completed installation photos show steel SmartJack supports positioned beneath wooden beams throughout the crawlspace, adding support alongside the existing posts. The different support heights allowed the team to work within both taller and lower-clearance areas. Close views of the completed installation show the adjustable threaded connections and steel bearing plates beneath the beams. This album documents the conditions before repair and the additional structural support installed by Arizona Foundation Solutions beneath this Globe home.

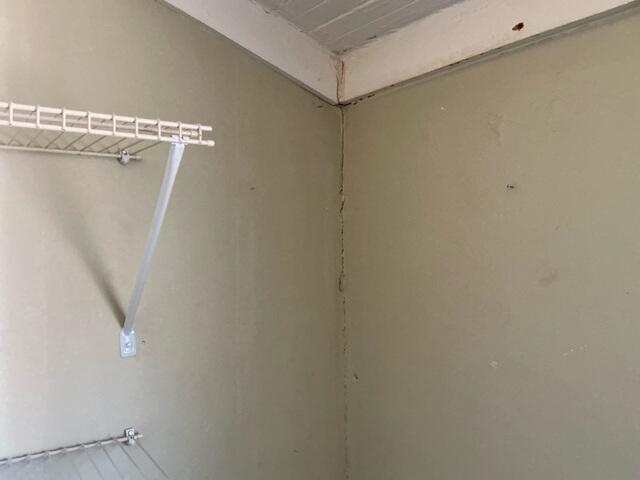

Interior Wall Corner Crack Before Crawl Space Repair

A vertical crack is visible along an interior wall corner, with additional separation near the ceiling trim. This photo documents an interior condition at the Globe home before the SmartJack support installation.

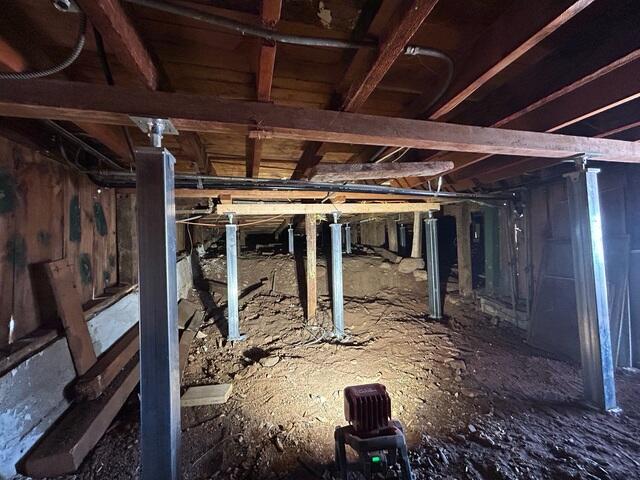

Completed SmartJack Crawl Space Support Installation in Globe, AZ

Multiple steel SmartJack supports are installed beneath the wooden beams of this Globe home. The completed view shows additional support throughout the crawlspace, with adjustable connections fitted beneath the existing floor framing.

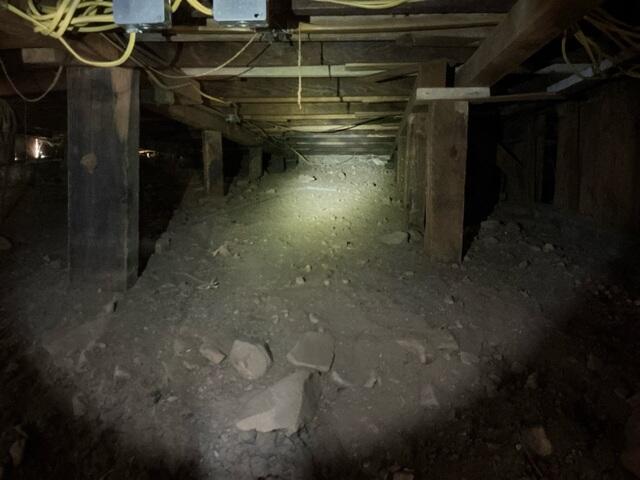

Existing Crawl Space Floor Supports Before Repair

Before SmartJack installation, wooden posts supported the floor framing above exposed soil and rocks. This view documents the existing support arrangement and the changing clearance beneath the Globe, AZ home.

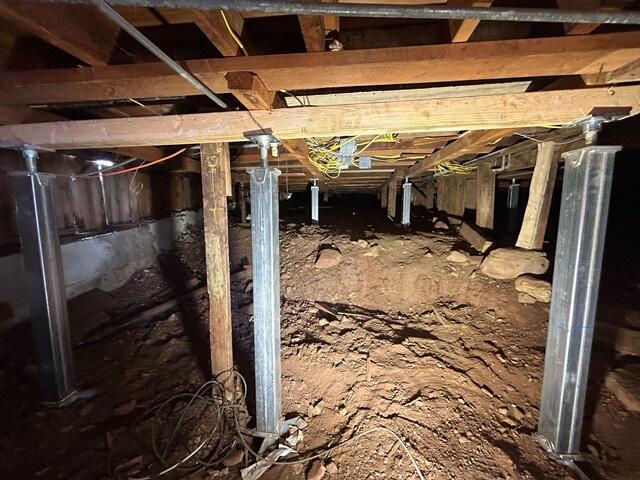

SmartJack Supports Installed Beneath Wooden Beams

Steel SmartJack columns provide additional support beneath wooden beams alongside existing wood posts. The visible threaded connections and top plates show how the new supports fit beneath the floor system.

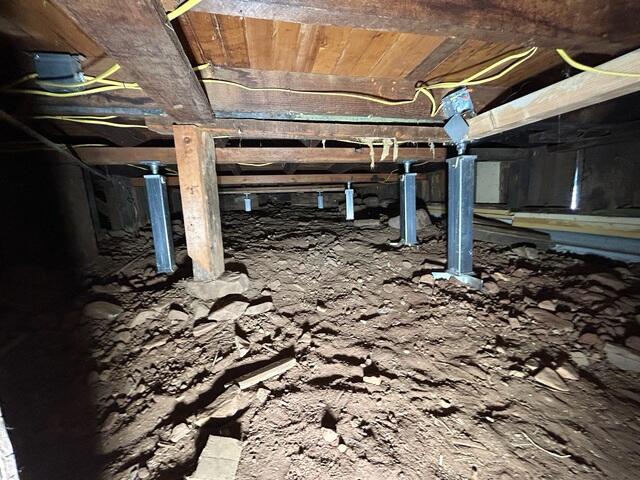

SmartJack Floor Supports Across Varying Crawlspace Heights

SmartJack supports of different heights are visible beneath the home's wooden floor framing. The installation extends from the taller foreground area into the lower-clearance section farther beneath the house.

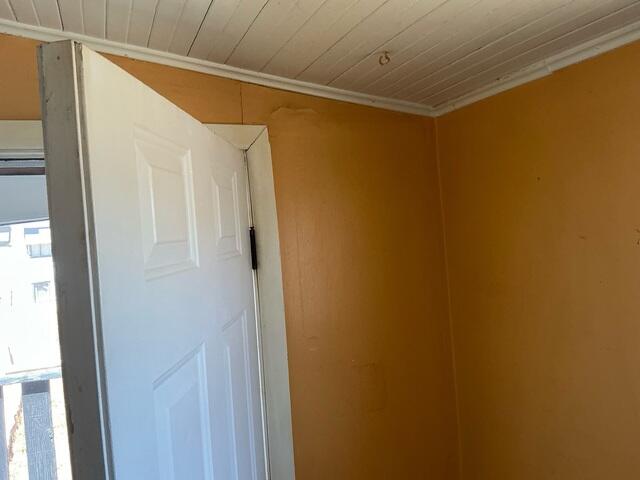

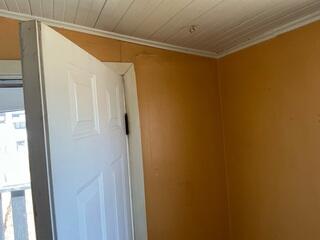

Wall Crack Above Doorway Before Support Installation

A crack extends upward from the doorway trim toward the ceiling, with additional cracking nearby. The photo records the condition of the interior wall before crawl space support work at this Globe, AZ property.

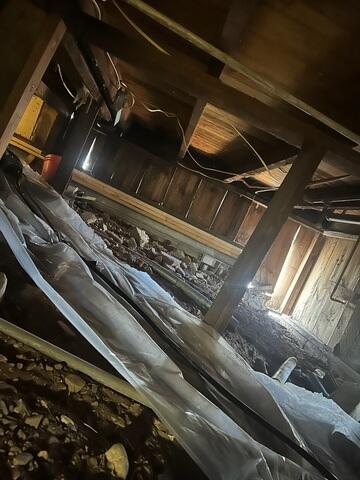

Underfloor Framing and Existing Wooden Support Posts

This view shows wooden support posts, exposed floor joists, plumbing, and ground covering beneath the home. It provides another perspective of the underfloor area involved in the Globe SmartJack project.

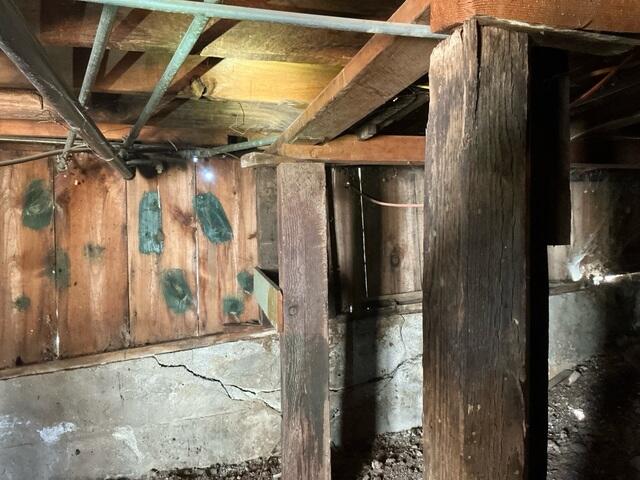

Wooden Support Posts and Foundation Wall Cracks

Existing wooden posts support the floor beams above, while visible cracks extend across the concrete perimeter wall behind them. This close-up documents conditions beneath the home before the additional SmartJack supports were installed.

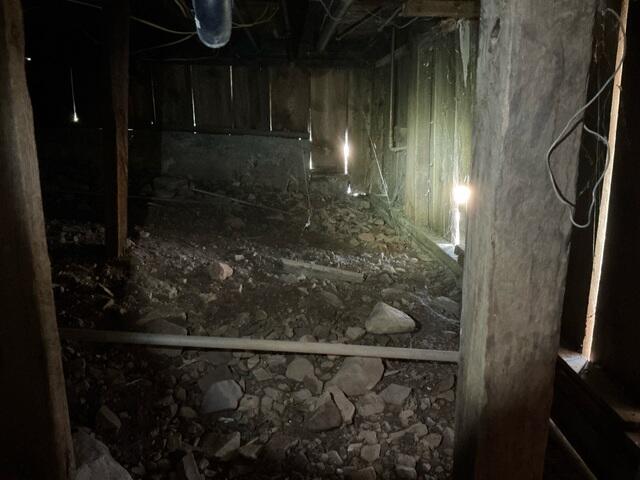

Crawlspace Conditions Before SmartJack Installation

Exposed rocky ground, wooden support posts, and perimeter boards are visible beneath the Globe home. Existing plumbing crosses the foreground, showing the conditions and obstacles within the crawlspace before support installation.

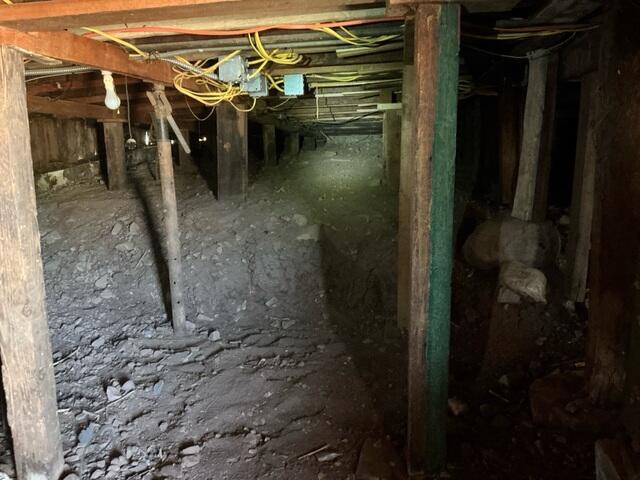

Existing Floor Support System Before SmartJack Repair

Wooden posts and an existing metal support stand beneath the home's floor beams. This wider view documents the original support system, overhead utilities, and uneven ground before Arizona Foundation Solutions installed the new SmartJack supports.
